trueCABLE 3-D Staggered 24 Port 19” Toolless Modular Patch Panel, Unshielded, Blank, 1U Rack Mount, with Cable Management Bar, High Density, Black

trueCABLE 3-D Staggered 24 Port 19” Toolless Modular Patch Panel, Unshielded, Blank, 1U Rack Mount, with Cable Management Bar, High Density, Black

$89.99 USD
$89.99 USD
Shipping calculated at checkout.

Overview

  • Brand : TRUE CABLE
  • Connector Type : Coaxial, HDMI, RCA, RJ45
  • Cable Type : Ethernet
  • Compatible Devices : Personal Computer
  • Special Feature : Component Rated

About this item

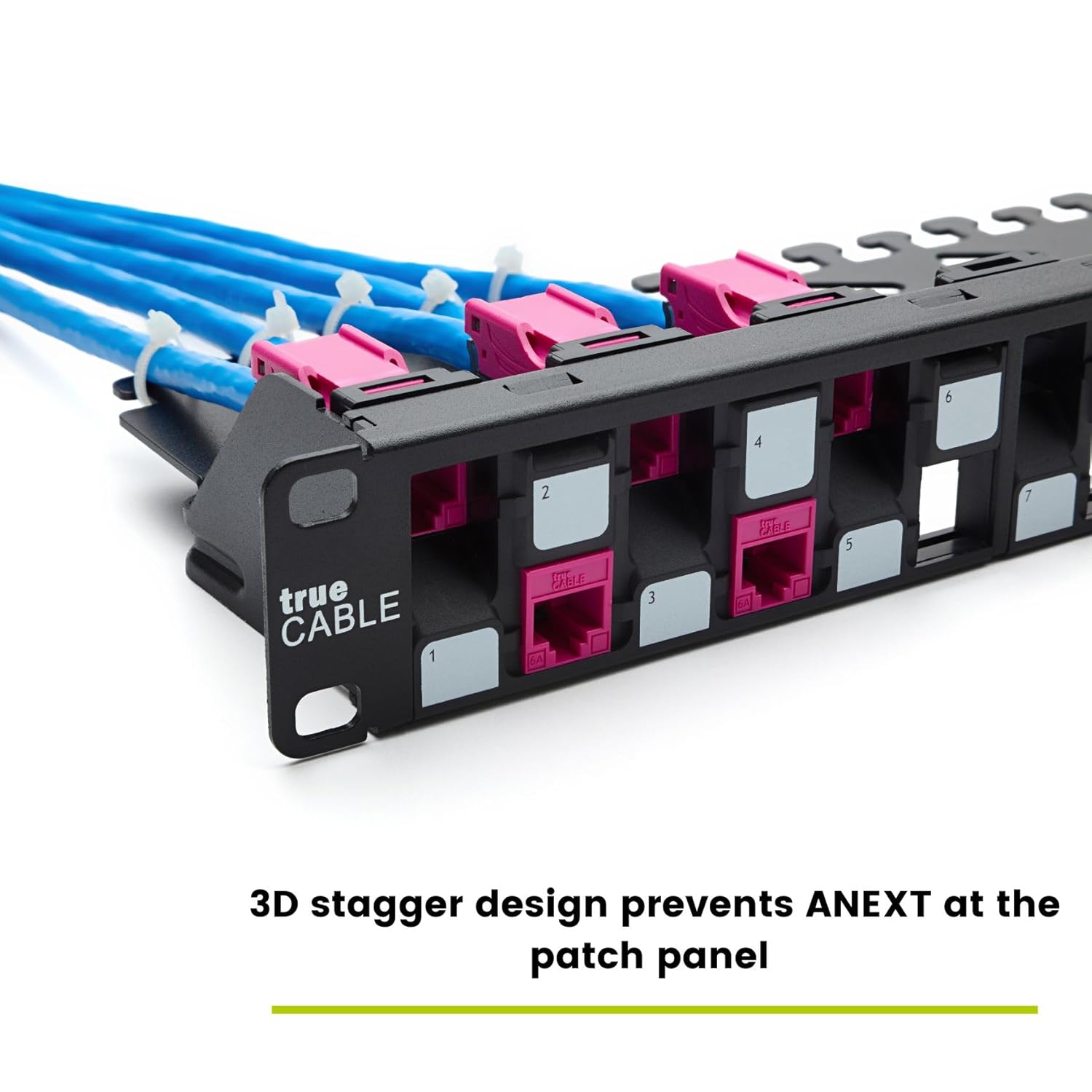

  • COMPONENT RATED FOR 10G NETWORKS. Unique 3-D staggered design offsets unshielded keystone jacks in a three dimensional pattern to mitigate alien crosstalk (ANEXT) at the patch panel. Designed specifically to achieve ISO/IEC-11801 and ANSI/TIA 568.2-D Cat6A Component Rated performance when combined with trueCABLE Cat6A Component Rated unshielded keystone jacks.

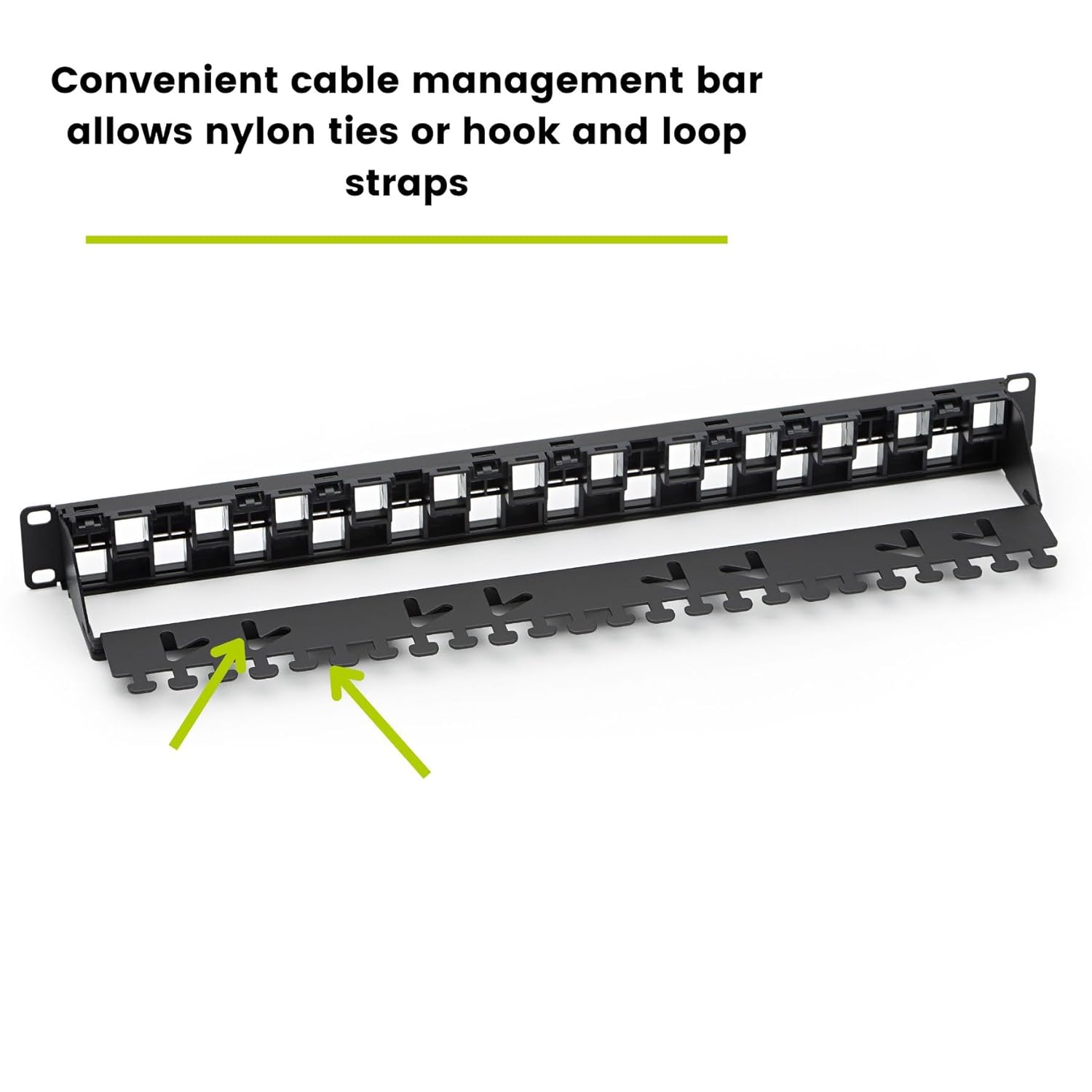

  • VERSATILE. Designed for Cat6A unshielded keystone jacks and U/UTP (unshielded) Ethernet cable. Fully backwards compatible with Cat5e and Cat6. Accepts tool-less and 110 punch down style jacks. The unique cable management bar accepts hook and loop straps for bundling cables or nylon ties. Not recommended for shielded Ethernet cable.

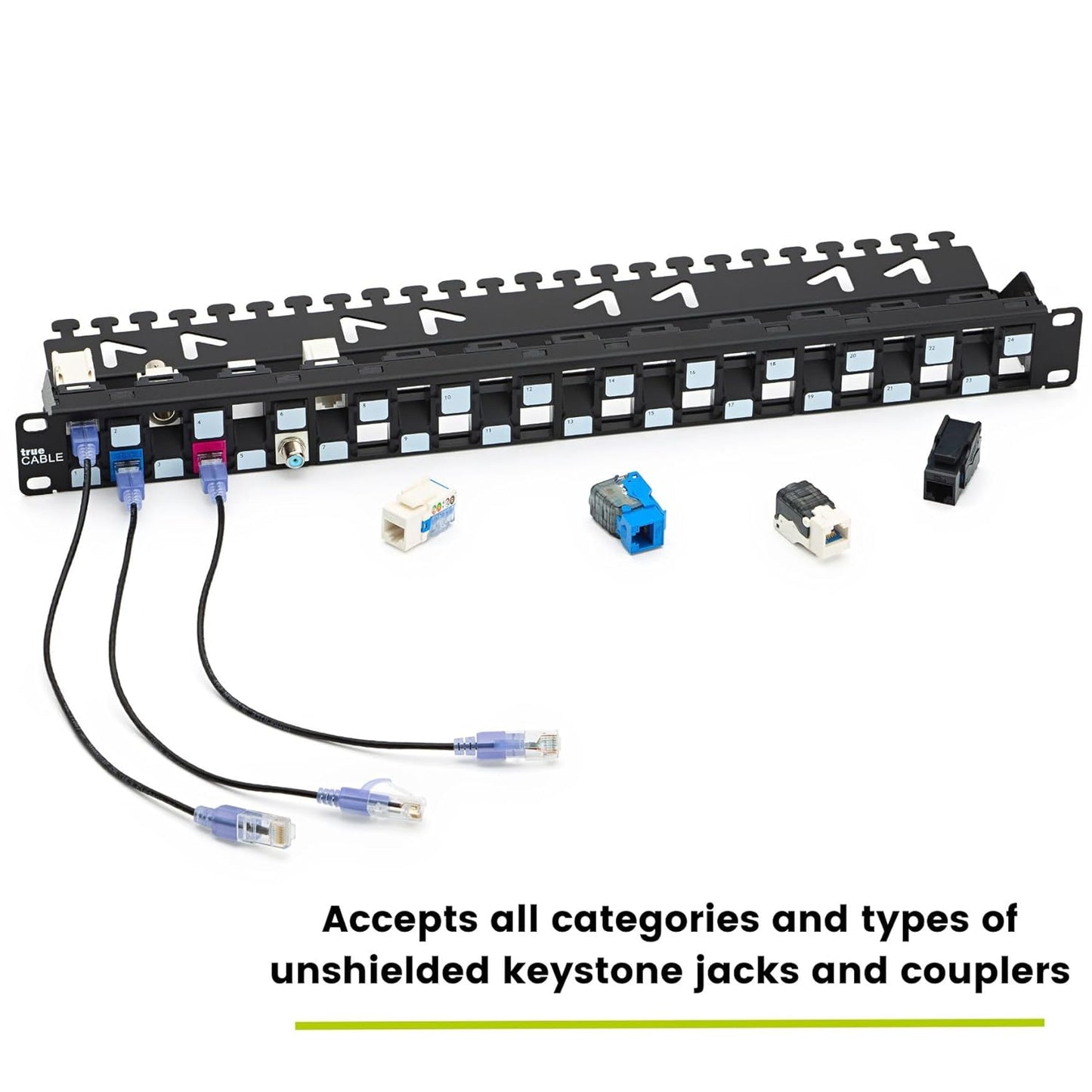

  • COMPATIBLE. Tested and certified with trueCABLE tool-less, punch down keystone jacks, and couplers. Works with industry standard snap-in HD Ethernet keystone jacks and couplers. Designed specifically for Ethernet communications cable and hardware. This panel will accept BNC, RCA, HDMI, USB, fiber optic, and snap-in Coaxial couplers, however using the recessed ports (12 out of the 24) may result in oversized cabling/connectors to not physically fit. Please confirm compatibility.
  • QUALITY GUARANTEED. Meets EIA-310-E, FCC part 68-F & IEC 60603-7. RoHS Compliant & UL Listed. Frame is ABS UL94V-0 rated.

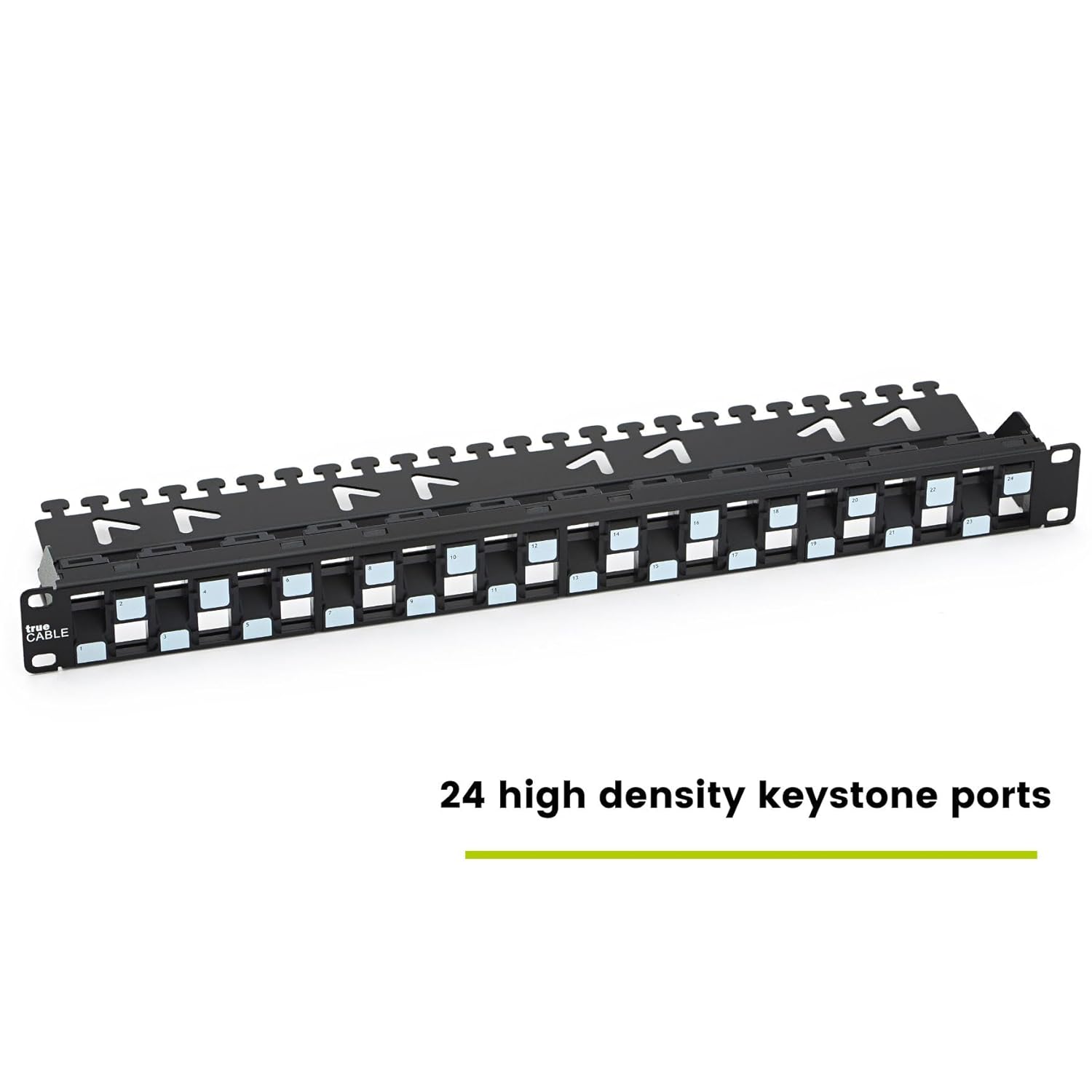

  • ✓ FIELD TESTED, CUSTOMER APPROVED. Individually numbered ports with spacing provided for permanent labeling or temporary write-on port identification. Integrated cable manager and panel are SPCC 1.6t black powder coated cold rolled steel. Unit measures 19” wide by 1.75” high. A minimum rack depth of 8” is recommended for proper clearance. Supplied with 24 nylon ties. Backed by our FOREVER WARRANTY.
